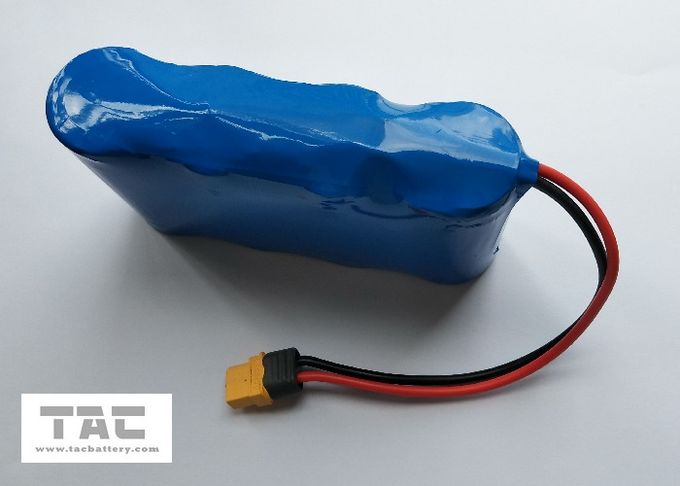

The use of these batteries is for bait boats for carp fishing.
100% truth capacity 32700 6ah cell passed UL1642
The battery pack is including of PCB and spcially connector
Deep circel 2000 times base on DOD 100%
|
No.
|
Items
|
Specifications
|
Remark
|
|
|
1
|
Capacity for assembled cell
discharging by 0.2C |
≥ 5.8Ah
|
Standard discharging method
|
|
|
2
|
Battery Voltage
|
12.8-13.2V
|
Delivery voltage, Within 10 days from Factory
|
|
|
3
|
Standard charge condition
|
Charge with 0.2C constant current and 14.6Vconstant voltage, charge to 14.6V continue charging till current decline to ≤0.01C
|
Charge voltage: 14.6V±0.02V
Charge current:0.2C 14.6V±0.02V |
|
|
4
|
Maximum charge current
|
0.5C
|
3A
|
For continuous charging mod
|
|
5
|
Maximum discharge current
|
1.5C
|
9A
|
For continuous discharge mod
|
|
6
|
Standard discharging method
|
0.2C constant current discharge to 10V
|
0.2C to 10V
|
|
|
7
|
Internal Impedance
|
Assemblage Impedance
|
Measure two sides of the drawing line after assembling
|
|
|
8
|
Net
|
0.58 kg Pending
|
PACK
|
|

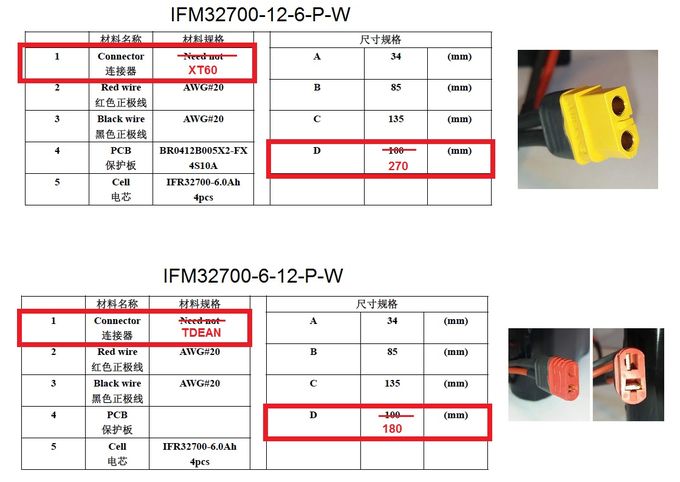

| Item | Specification | Size | |||
| 1 | Connector | XT60 | A | 34 | (mm) |
| 2 | Red wire | AWG#20 | B | 85 | (mm) |
| 3 | Black wire | AWG#20 | C | 135 | (mm) |
| 4 |
PCB |
BR0412B005X2-FX4S10A | D | 270 | (mm) |
| 5 |
Cell |
IFR32700-6.0Ah |
|||
XT60
